深度推荐系统

!pip install -q keras-rs

import os

os.environ["KERAS_BACKEND"] = "jax"  # `"tensorflow"`/`"torch"`

import keras
import matplotlib.pyplot as plt
import tensorflow as tf  # Needed for the dataset
import tensorflow_datasets as tfds

import keras_rs

# Ratings data with user and movie data.
ratings = tfds.load("movielens/100k-ratings", split="train")
# Features of all the available movies.
movies = tfds.load("movielens/100k-movies", split="train")

for data in ratings.take(1).as_numpy_iterator():
    print(str(data).replace(", '", ",\n '"))

USERS_COUNT = (
    ratings.map(lambda x: tf.strings.to_number(x["user_id"], out_type=tf.int32))
    .reduce(tf.constant(0, tf.int32), tf.maximum)
    .numpy()
)

for data in movies.take(1).as_numpy_iterator():
    print(str(data).replace(", '", ",\n '"))

MOVIES_COUNT = movies.cardinality().numpy()

AGE_BINS_COUNT = 10
user_age_feature = keras.utils.FeatureSpace.float_discretized(
    num_bins=AGE_BINS_COUNT, output_mode="int"
)

user_rating_feature = keras.utils.FeatureSpace.float_rescaled(
    scale=1.0 / 4.0, offset=-1.0 / 4.0
)

user_gender_feature = keras.utils.FeatureSpace.integer_categorical(
    num_oov_indices=0, output_mode="int"
)
user_occupation_feature = keras.utils.FeatureSpace.integer_categorical(
    num_oov_indices=0, output_mode="int"
)

USER_GENDER_CROSS_COUNT = 20
user_gender_age_cross = keras.utils.FeatureSpace.cross(
    feature_names=("user_gender", "raw_user_age"),
    crossing_dim=USER_GENDER_CROSS_COUNT,
    output_mode="int",
)

title_vectorizer = keras.layers.TextVectorization(
    max_tokens=10_000, output_sequence_length=16, dtype="int32"
)
title_vectorizer.adapt(movies.map(lambda x: x["movie_title"]))

for data in movies.take(1).as_numpy_iterator():
    print(title_vectorizer(data["movie_title"]))

print(title_vectorizer.get_vocabulary()[40:50])

title_feature = keras.utils.FeatureSpace.feature(
    preprocessor=title_vectorizer, dtype="string", output_mode="float"
)
TITLE_TOKEN_COUNT = title_vectorizer.vocabulary_size()

feature_space = keras.utils.FeatureSpace(
    features={
        # Numerical features to discretize.
        "raw_user_age": user_age_feature,
        # Categorical features encoded as integers.
        "user_gender": user_gender_feature,
        "user_occupation_label": user_occupation_feature,
        # Labels are ratings between 0 and 1.
        "user_rating": user_rating_feature,
        "movie_title": title_feature,
    },
    crosses=[user_gender_age_cross],
    output_mode="dict",
)

feature_space.adapt(ratings)
GENDERS_COUNT = feature_space.preprocessors["user_gender"].vocabulary_size()
OCCUPATIONS_COUNT = feature_space.preprocessors[
    "user_occupation_label"
].vocabulary_size()

movie_titles = [""] * (MOVIES_COUNT + 1)
movie_genres = [[]] * (MOVIES_COUNT + 1)
for x in movies.as_numpy_iterator():
    movie_id = int(x["movie_id"])
    movie_titles[movie_id] = x["movie_title"]
    movie_genres[movie_id] = x["movie_genres"].tolist()

MAX_GENRES_PER_MOVIE = 0
max_genre_id = 0
for one_movie_genres in movie_genres:
    MAX_GENRES_PER_MOVIE = max(MAX_GENRES_PER_MOVIE, len(one_movie_genres))
    if one_movie_genres:
        max_genre_id = max(max_genre_id, max(one_movie_genres))

GENRES_COUNT = max_genre_id + 1

movie_genres = [
    [g + 1 for g in genres] + [0] * (MAX_GENRES_PER_MOVIE - len(genres))
    for genres in movie_genres
]

movie_titles_vectors = title_vectorizer(movie_titles)

MOVIES_DATASET = {
    "movie_id": keras.ops.arange(0, MOVIES_COUNT + 1, dtype="int32"),
    "movie_title_vector": movie_titles_vectors,
    "movie_genres": keras.ops.convert_to_tensor(movie_genres, dtype="int32"),
}

def preprocess_rating(x):
    features = feature_space(
        {
            "raw_user_age": x["raw_user_age"],
            "user_gender": x["user_gender"],
            "user_occupation_label": x["user_occupation_label"],
            "user_rating": x["user_rating"],
            "movie_title": x["movie_title"],
        }
    )
    features = {k: tf.squeeze(v, axis=0) for k, v in features.items()}
    movie_genres = x["movie_genres"]

    return (
        {
            # User inputs are user ID and user features
            "user_id": int(x["user_id"]),
            "raw_user_age": features["raw_user_age"],
            "user_gender": features["user_gender"],
            "user_occupation_label": features["user_occupation_label"],
            "user_gender_X_raw_user_age": tf.squeeze(
                features["user_gender_X_raw_user_age"], axis=-1
            ),
            # Movie inputs are movie ID, vectorized title and genres
            "movie_id": int(x["movie_id"]),
            "movie_title_vector": features["movie_title"],
            "movie_genres": tf.pad(
                movie_genres + 1,
                [[0, MAX_GENRES_PER_MOVIE - tf.shape(movie_genres)[0]]],
            ),
        },
        # Label is user rating between 0 and 1
        features["user_rating"],
    )

shuffled_ratings = ratings.map(preprocess_rating).shuffle(
    100_000, seed=42, reshuffle_each_iteration=False
)

train_ratings = shuffled_ratings.take(80_000).batch(1000).cache()
test_ratings = shuffled_ratings.skip(80_000).take(20_000).batch(1000).cache()

                            +----------------------+
                            |       64 x 32        |
                            +----------------------+
                                       | relu
                          +--------------------------+
                          |         128 x 64         |
                          +--------------------------+
                                       | relu
                        +------------------------------+
                        |          ... x 128           |
                        +------------------------------+

class QueryModel(keras.Model):
    """Model for encoding user queries."""

    def __init__(self, layer_sizes, embedding_dimension=32):
        """Construct a model for encoding user queries.

        Args:
          layer_sizes: A list of integers where the i-th entry represents the
            number of units the i-th layer contains.
          embedding_dimension: Output dimension for all embedding tables.
        """
        super().__init__()

        # We first generate embeddings.
        self.user_embedding = keras.layers.Embedding(
            # +1 for user ID zero, which does not exist
            USERS_COUNT + 1,
            embedding_dimension,
        )
        self.gender_embedding = keras.layers.Embedding(
            GENDERS_COUNT, embedding_dimension
        )
        self.age_embedding = keras.layers.Embedding(AGE_BINS_COUNT, embedding_dimension)
        self.gender_x_age_embedding = keras.layers.Embedding(
            USER_GENDER_CROSS_COUNT, embedding_dimension
        )
        self.occupation_embedding = keras.layers.Embedding(
            OCCUPATIONS_COUNT, embedding_dimension
        )

        # Then construct the layers.
        self.dense_layers = keras.Sequential()

        # Use the ReLU activation for all but the last layer.
        for layer_size in layer_sizes[:-1]:
            self.dense_layers.add(keras.layers.Dense(layer_size, activation="relu"))

        # No activation for the last layer.
        self.dense_layers.add(keras.layers.Dense(layer_sizes[-1]))

    def call(self, inputs):
        # Take the inputs, pass each through its embedding layer, concatenate.
        feature_embedding = keras.ops.concatenate(
            [
                self.user_embedding(inputs["user_id"]),
                self.gender_embedding(inputs["user_gender"]),
                self.age_embedding(inputs["raw_user_age"]),
                self.gender_x_age_embedding(inputs["user_gender_X_raw_user_age"]),
                self.occupation_embedding(inputs["user_occupation_label"]),
            ],
            axis=1,
        )
        return self.dense_layers(feature_embedding)

class CandidateModel(keras.Model):
    """Model for encoding candidates (movies)."""

    def __init__(self, layer_sizes, embedding_dimension=32):
        """Construct a model for encoding candidates (movies).

        Args:
          layer_sizes: A list of integers where the i-th entry represents the
            number of units the i-th layer contains.
          embedding_dimension: Output dimension for all embedding tables.
        """
        super().__init__()

        # We first generate embeddings.
        self.movie_embedding = keras.layers.Embedding(
            # +1 for movie ID zero, which does not exist
            MOVIES_COUNT + 1,
            embedding_dimension,
        )
        # Take all the title tokens for the title of the movie, embed each
        # token, and then take the mean of all token embeddings.
        self.movie_title_embedding = keras.Sequential(
            [
                keras.layers.Embedding(
                    # +1 for OOV token, which is used for padding
                    TITLE_TOKEN_COUNT + 1,
                    embedding_dimension,
                    mask_zero=True,
                ),
                keras.layers.GlobalAveragePooling1D(),
            ]
        )
        # Take all the genres for the movie, embed each genre, and then take the
        # mean of all genre embeddings.
        self.movie_genres_embedding = keras.Sequential(
            [
                keras.layers.Embedding(
                    # +1 for OOV genre, which is used for padding
                    GENRES_COUNT + 1,
                    embedding_dimension,
                    mask_zero=True,
                ),
                keras.layers.GlobalAveragePooling1D(),
            ]
        )

        # Then construct the layers.
        self.dense_layers = keras.Sequential()

        # Use the ReLU activation for all but the last layer.
        for layer_size in layer_sizes[:-1]:
            self.dense_layers.add(keras.layers.Dense(layer_size, activation="relu"))

        # No activation for the last layer.
        self.dense_layers.add(keras.layers.Dense(layer_sizes[-1]))

    def call(self, inputs):
        movie_id = inputs["movie_id"]
        movie_title_vector = inputs["movie_title_vector"]
        movie_genres = inputs["movie_genres"]
        feature_embedding = keras.ops.concatenate(
            [
                self.movie_embedding(movie_id),
                self.movie_title_embedding(movie_title_vector),
                self.movie_genres_embedding(movie_genres),
            ],
            axis=1,
        )
        return self.dense_layers(feature_embedding)

class RetrievalModel(keras.Model):
    """Combined model."""

    def __init__(
        self,
        layer_sizes=(32,),
        embedding_dimension=32,
        retrieval_k=100,
    ):
        """Construct a combined model.

        Args:
          layer_sizes: A list of integers where the i-th entry represents the
            number of units the i-th layer contains.
          embedding_dimension: Output dimension for all embedding tables.
          retrieval_k: How many candidate movies to retrieve.
        """
        super().__init__()
        self.query_model = QueryModel(layer_sizes, embedding_dimension)
        self.candidate_model = CandidateModel(layer_sizes, embedding_dimension)
        self.retrieval = keras_rs.layers.BruteForceRetrieval(
            k=retrieval_k, return_scores=False
        )
        self.update_candidates()  # Provide an initial set of candidates
        self.loss_fn = keras.losses.MeanSquaredError()
        self.top_k_metric = keras.metrics.SparseTopKCategoricalAccuracy(
            k=retrieval_k, from_sorted_ids=True
        )

    def update_candidates(self):
        self.retrieval.update_candidates(
            self.candidate_model.predict(MOVIES_DATASET, verbose=0)
        )

    def call(self, inputs, training=False):
        query_embeddings = self.query_model(
            {
                "user_id": inputs["user_id"],
                "raw_user_age": inputs["raw_user_age"],
                "user_gender": inputs["user_gender"],
                "user_occupation_label": inputs["user_occupation_label"],
                "user_gender_X_raw_user_age": inputs["user_gender_X_raw_user_age"],
            }
        )
        candidate_embeddings = self.candidate_model(
            {
                "movie_id": inputs["movie_id"],
                "movie_title_vector": inputs["movie_title_vector"],
                "movie_genres": inputs["movie_genres"],
            }
        )

        result = {
            "query_embeddings": query_embeddings,
            "candidate_embeddings": candidate_embeddings,
        }
        if not training:
            # No need to spend time extracting top predicted movies during
            # training, they are not used.
            result["predictions"] = self.retrieval(query_embeddings)
        return result

    def evaluate(
        self,
        x=None,
        y=None,
        batch_size=None,
        verbose="auto",
        sample_weight=None,
        steps=None,
        callbacks=None,
        return_dict=False,
        **kwargs,
    ):
        """Overridden to update the candidate set.

        Before evaluating the model, we need to update our retrieval layer by
        re-computing the values predicted by the candidate model for all the
        candidates.
        """
        self.update_candidates()
        return super().evaluate(
            x,
            y,
            batch_size=batch_size,
            verbose=verbose,
            sample_weight=sample_weight,
            steps=steps,
            callbacks=callbacks,
            return_dict=return_dict,
            **kwargs,
        )

    def compute_loss(self, x, y, y_pred, sample_weight, training=True):
        query_embeddings = y_pred["query_embeddings"]
        candidate_embeddings = y_pred["candidate_embeddings"]

        labels = keras.ops.expand_dims(y, -1)
        # Compute the affinity score by multiplying the two embeddings.
        scores = keras.ops.sum(
            keras.ops.multiply(query_embeddings, candidate_embeddings),
            axis=1,
            keepdims=True,
        )
        return self.loss_fn(labels, scores, sample_weight)

    def compute_metrics(self, x, y, y_pred, sample_weight=None):
        if "predictions" in y_pred:
            # We are evaluating or predicting. Update `top_k_metric`.
            movie_ids = x["movie_id"]
            predictions = y_pred["predictions"]
            # For `top_k_metric`, which is a `SparseTopKCategoricalAccuracy`, we
            # only take top rated movies, and we put a weight of 0 for the rest.
            rating_weight = keras.ops.cast(keras.ops.greater(y, 0.9), "float32")
            sample_weight = (
                rating_weight
                if sample_weight is None
                else keras.ops.multiply(rating_weight, sample_weight)
            )
            self.top_k_metric.update_state(
                movie_ids, predictions, sample_weight=sample_weight
            )
            return self.get_metrics_result()
        else:
            # We are training. `top_k_metric` is not updated and is zero, so
            # don't report it.
            result = self.get_metrics_result()
            result.pop(self.top_k_metric.name)
            return result

NUM_EPOCHS = 30

one_layer_model = RetrievalModel((32,))
one_layer_model.compile(optimizer=keras.optimizers.Adagrad(0.05))

one_layer_history = one_layer_model.fit(
    train_ratings,
    validation_data=test_ratings,
    validation_freq=5,
    epochs=NUM_EPOCHS,
)

two_layer_model = RetrievalModel((64, 32))
two_layer_model.compile(optimizer=keras.optimizers.Adagrad(0.05))
two_layer_history = two_layer_model.fit(
    train_ratings,
    validation_data=test_ratings,
    validation_freq=5,
    epochs=NUM_EPOCHS,
)

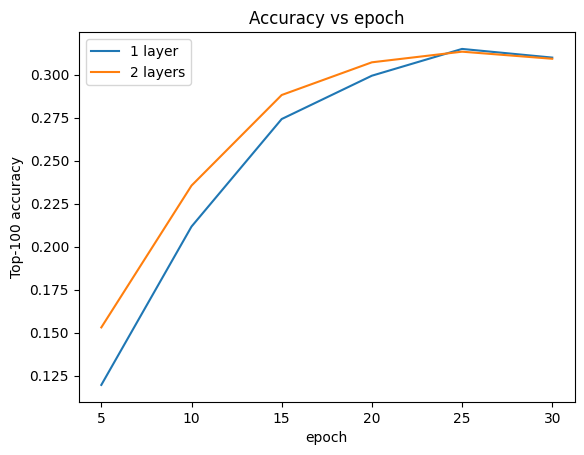

METRIC = "val_sparse_top_k_categorical_accuracy"
num_validation_runs = len(one_layer_history.history[METRIC])
epochs = [(x + 1) * 5 for x in range(num_validation_runs)]

plt.plot(epochs, one_layer_history.history[METRIC], label="1 layer")
plt.plot(epochs, two_layer_history.history[METRIC], label="2 layers")
plt.title("Accuracy vs epoch")
plt.xlabel("epoch")
plt.ylabel("Top-100 accuracy")
plt.legend()
plt.show()

three_layer_model = RetrievalModel((128, 64, 32))
three_layer_model.compile(optimizer=keras.optimizers.Adagrad(0.05))
three_layer_history = three_layer_model.fit(
    train_ratings,
    validation_data=test_ratings,
    validation_freq=5,
    epochs=NUM_EPOCHS,
)

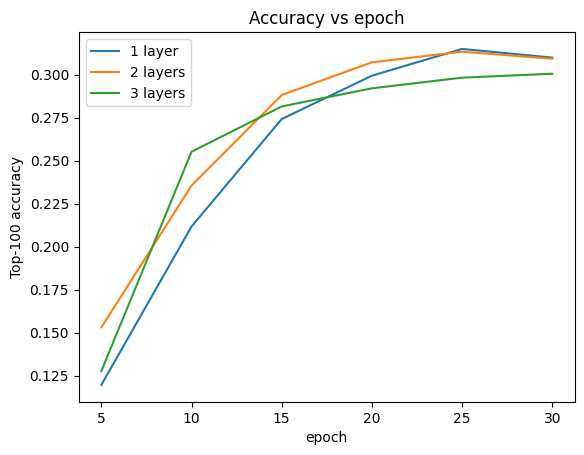

plt.plot(epochs, one_layer_history.history[METRIC], label="1 layer")
plt.plot(epochs, two_layer_history.history[METRIC], label="2 layers")
plt.plot(epochs, three_layer_history.history[METRIC], label="3 layers")
plt.title("Accuracy vs epoch")
plt.xlabel("epoch")
plt.ylabel("Top-100 accuracy")
plt.legend()
plt.show()
