单目深度估计

作者： Victor Basu
创建日期 2021/08/30
最后修改日期 2024/08/13
描述： 使用卷积网络实现深度估计模型。

ⓘ 本示例使用 Keras 3

引言

深度估计 是从 2D 图像推断场景几何的关键步骤。单目深度估计 的目标是仅输入单张 RGB 图像，预测每个像素的深度值或推断深度信息。本示例将展示一种使用卷积网络和简单损失函数构建深度估计模型的方法。

depth

设置

import os

os.environ["KERAS_BACKEND"] = "tensorflow"

import sys

import tensorflow as tf
import keras
from keras import layers
from keras import ops
import pandas as pd
import numpy as np
import cv2
import matplotlib.pyplot as plt

keras.utils.set_random_seed(123)

下载数据集

我们将使用数据集 DIODE: 密集室内外深度数据集 进行本教程的学习。然而，我们使用验证集生成模型的训练和评估子集。我们使用验证集而非原始数据集的训练集，是因为训练集包含 81GB 数据，相比之下，验证集只有 2.6GB，下载难度较大。您还可以使用其他数据集，例如 NYU-v2 和 KITTI。

annotation_folder = "/dataset/"
if not os.path.exists(os.path.abspath(".") + annotation_folder):
    annotation_zip = keras.utils.get_file(
        "val.tar.gz",
        cache_subdir=os.path.abspath("."),
        origin="http://diode-dataset.s3.amazonaws.com/val.tar.gz",
        extract=True,
    )

Downloading data from http://diode-dataset.s3.amazonaws.com/val.tar.gz

2774625282/2774625282 ━━━━━━━━━━━━━━━━━━━━ 205s 0us/step

准备数据集

我们只使用室内图像来训练我们的深度估计模型。

path = "val/indoors"

filelist = []

for root, dirs, files in os.walk(path):
    for file in files:
        filelist.append(os.path.join(root, file))

filelist.sort()
data = {
    "image": [x for x in filelist if x.endswith(".png")],
    "depth": [x for x in filelist if x.endswith("_depth.npy")],
    "mask": [x for x in filelist if x.endswith("_depth_mask.npy")],
}
df = pd.DataFrame(data)

df = df.sample(frac=1, random_state=42)

准备超参数

HEIGHT = 256
WIDTH = 256
LR = 0.00001
EPOCHS = 30
BATCH_SIZE = 32

构建数据管道

该管道接收一个包含 RGB 图像以及深度和深度掩码文件路径的数据框。
它读取并调整 RGB 图像的大小。
它读取深度和深度掩码文件，处理它们以生成深度图图像并调整其大小。
它返回一批次的 RGB 图像和深度图图像。

class DataGenerator(keras.utils.PyDataset):
    def __init__(self, data, batch_size=6, dim=(768, 1024), n_channels=3, shuffle=True):
        super().__init__()
        """
        Initialization
        """
        self.data = data
        self.indices = self.data.index.tolist()
        self.dim = dim
        self.n_channels = n_channels
        self.batch_size = batch_size
        self.shuffle = shuffle
        self.min_depth = 0.1
        self.on_epoch_end()

    def __len__(self):
        return int(np.ceil(len(self.data) / self.batch_size))

    def __getitem__(self, index):
        if (index + 1) * self.batch_size > len(self.indices):
            self.batch_size = len(self.indices) - index * self.batch_size
        # Generate one batch of data
        # Generate indices of the batch
        index = self.indices[index * self.batch_size : (index + 1) * self.batch_size]
        # Find list of IDs
        batch = [self.indices[k] for k in index]
        x, y = self.data_generation(batch)

        return x, y

    def on_epoch_end(self):
        """
        Updates indexes after each epoch
        """
        self.index = np.arange(len(self.indices))
        if self.shuffle == True:
            np.random.shuffle(self.index)

    def load(self, image_path, depth_map, mask):
        """Load input and target image."""

        image_ = cv2.imread(image_path)
        image_ = cv2.cvtColor(image_, cv2.COLOR_BGR2RGB)
        image_ = cv2.resize(image_, self.dim)
        image_ = tf.image.convert_image_dtype(image_, tf.float32)

        depth_map = np.load(depth_map).squeeze()

        mask = np.load(mask)
        mask = mask > 0

        max_depth = min(300, np.percentile(depth_map, 99))
        depth_map = np.clip(depth_map, self.min_depth, max_depth)
        depth_map = np.log(depth_map, where=mask)

        depth_map = np.ma.masked_where(~mask, depth_map)

        depth_map = np.clip(depth_map, 0.1, np.log(max_depth))
        depth_map = cv2.resize(depth_map, self.dim)
        depth_map = np.expand_dims(depth_map, axis=2)
        depth_map = tf.image.convert_image_dtype(depth_map, tf.float32)

        return image_, depth_map

    def data_generation(self, batch):
        x = np.empty((self.batch_size, *self.dim, self.n_channels))
        y = np.empty((self.batch_size, *self.dim, 1))

        for i, batch_id in enumerate(batch):
            x[i,], y[i,] = self.load(
                self.data["image"][batch_id],
                self.data["depth"][batch_id],
                self.data["mask"][batch_id],
            )
        x, y = x.astype("float32"), y.astype("float32")
        return x, y

可视化样本

def visualize_depth_map(samples, test=False, model=None):
    input, target = samples
    cmap = plt.cm.jet
    cmap.set_bad(color="black")

    if test:
        pred = model.predict(input)
        fig, ax = plt.subplots(6, 3, figsize=(50, 50))
        for i in range(6):
            ax[i, 0].imshow((input[i].squeeze()))
            ax[i, 1].imshow((target[i].squeeze()), cmap=cmap)
            ax[i, 2].imshow((pred[i].squeeze()), cmap=cmap)

    else:
        fig, ax = plt.subplots(6, 2, figsize=(50, 50))
        for i in range(6):
            ax[i, 0].imshow((input[i].squeeze()))
            ax[i, 1].imshow((target[i].squeeze()), cmap=cmap)


visualize_samples = next(
    iter(DataGenerator(data=df, batch_size=6, dim=(HEIGHT, WIDTH)))
)
visualize_depth_map(visualize_samples)

png

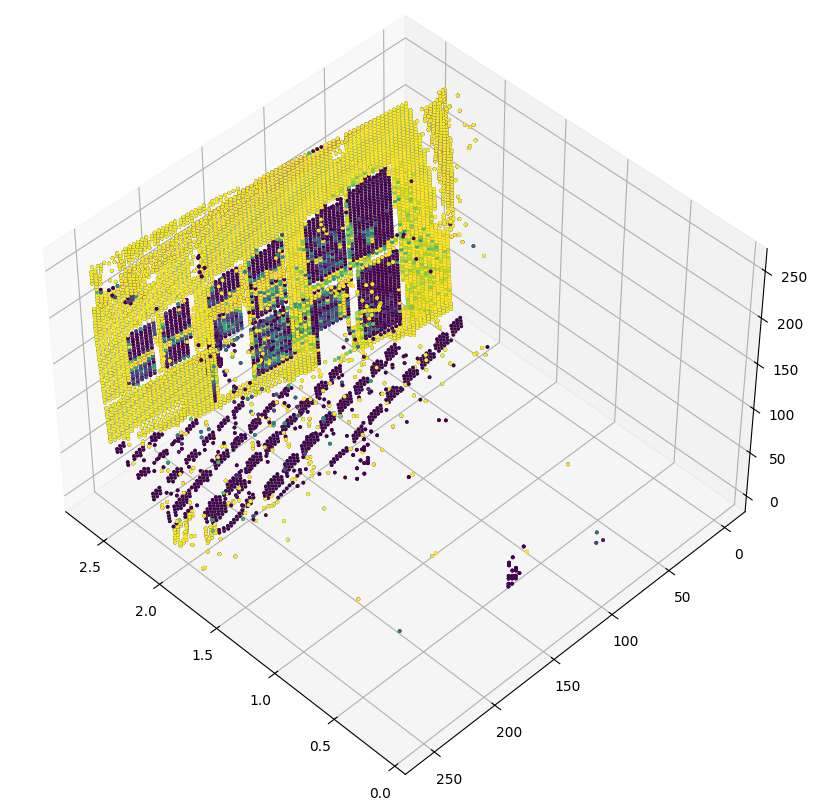

3D 点云可视化

depth_vis = np.flipud(visualize_samples[1][1].squeeze())  # target
img_vis = np.flipud(visualize_samples[0][1].squeeze())  # input

fig = plt.figure(figsize=(15, 10))
ax = plt.axes(projection="3d")

STEP = 3
for x in range(0, img_vis.shape[0], STEP):
    for y in range(0, img_vis.shape[1], STEP):
        ax.scatter(
            [depth_vis[x, y]] * 3,
            [y] * 3,
            [x] * 3,
            c=tuple(img_vis[x, y, :3] / 255),
            s=3,
        )
    ax.view_init(45, 135)

png

构建模型

基本模型源自 U-Net。
下采样块中实现了加法跳跃连接。

class DownscaleBlock(layers.Layer):
    def __init__(
        self, filters, kernel_size=(3, 3), padding="same", strides=1, **kwargs
    ):
        super().__init__(**kwargs)
        self.convA = layers.Conv2D(filters, kernel_size, strides, padding)
        self.convB = layers.Conv2D(filters, kernel_size, strides, padding)
        self.reluA = layers.LeakyReLU(negative_slope=0.2)
        self.reluB = layers.LeakyReLU(negative_slope=0.2)
        self.bn2a = layers.BatchNormalization()
        self.bn2b = layers.BatchNormalization()

        self.pool = layers.MaxPool2D((2, 2), (2, 2))

    def call(self, input_tensor):
        d = self.convA(input_tensor)
        x = self.bn2a(d)
        x = self.reluA(x)

        x = self.convB(x)
        x = self.bn2b(x)
        x = self.reluB(x)

        x += d
        p = self.pool(x)
        return x, p


class UpscaleBlock(layers.Layer):
    def __init__(
        self, filters, kernel_size=(3, 3), padding="same", strides=1, **kwargs
    ):
        super().__init__(**kwargs)
        self.us = layers.UpSampling2D((2, 2))
        self.convA = layers.Conv2D(filters, kernel_size, strides, padding)
        self.convB = layers.Conv2D(filters, kernel_size, strides, padding)
        self.reluA = layers.LeakyReLU(negative_slope=0.2)
        self.reluB = layers.LeakyReLU(negative_slope=0.2)
        self.bn2a = layers.BatchNormalization()
        self.bn2b = layers.BatchNormalization()
        self.conc = layers.Concatenate()

    def call(self, x, skip):
        x = self.us(x)
        concat = self.conc([x, skip])
        x = self.convA(concat)
        x = self.bn2a(x)
        x = self.reluA(x)

        x = self.convB(x)
        x = self.bn2b(x)
        x = self.reluB(x)

        return x


class BottleNeckBlock(layers.Layer):
    def __init__(
        self, filters, kernel_size=(3, 3), padding="same", strides=1, **kwargs
    ):
        super().__init__(**kwargs)
        self.convA = layers.Conv2D(filters, kernel_size, strides, padding)
        self.convB = layers.Conv2D(filters, kernel_size, strides, padding)
        self.reluA = layers.LeakyReLU(negative_slope=0.2)
        self.reluB = layers.LeakyReLU(negative_slope=0.2)

    def call(self, x):
        x = self.convA(x)
        x = self.reluA(x)
        x = self.convB(x)
        x = self.reluB(x)
        return x

定义损失函数

我们将在模型中优化 3 种损失：1. 结构相似性指数 (SSIM)。2. L1 损失，在本例中即逐点深度损失。3. 深度平滑损失。

在这三种损失函数中，SSIM 对模型性能的提升贡献最大。

def image_gradients(image):
    if len(ops.shape(image)) != 4:
        raise ValueError(
            "image_gradients expects a 4D tensor "
            "[batch_size, h, w, d], not {}.".format(ops.shape(image))
        )

    image_shape = ops.shape(image)
    batch_size, height, width, depth = ops.unstack(image_shape)

    dy = image[:, 1:, :, :] - image[:, :-1, :, :]
    dx = image[:, :, 1:, :] - image[:, :, :-1, :]

    # Return tensors with same size as original image by concatenating
    # zeros. Place the gradient [I(x+1,y) - I(x,y)] on the base pixel (x, y).
    shape = ops.stack([batch_size, 1, width, depth])
    dy = ops.concatenate([dy, ops.zeros(shape, dtype=image.dtype)], axis=1)
    dy = ops.reshape(dy, image_shape)

    shape = ops.stack([batch_size, height, 1, depth])
    dx = ops.concatenate([dx, ops.zeros(shape, dtype=image.dtype)], axis=2)
    dx = ops.reshape(dx, image_shape)

    return dy, dx


class DepthEstimationModel(keras.Model):
    def __init__(self):
        super().__init__()
        self.ssim_loss_weight = 0.85
        self.l1_loss_weight = 0.1
        self.edge_loss_weight = 0.9
        self.loss_metric = keras.metrics.Mean(name="loss")
        f = [16, 32, 64, 128, 256]
        self.downscale_blocks = [
            DownscaleBlock(f[0]),
            DownscaleBlock(f[1]),
            DownscaleBlock(f[2]),
            DownscaleBlock(f[3]),
        ]
        self.bottle_neck_block = BottleNeckBlock(f[4])
        self.upscale_blocks = [
            UpscaleBlock(f[3]),
            UpscaleBlock(f[2]),
            UpscaleBlock(f[1]),
            UpscaleBlock(f[0]),
        ]
        self.conv_layer = layers.Conv2D(1, (1, 1), padding="same", activation="tanh")

    def calculate_loss(self, target, pred):
        # Edges
        dy_true, dx_true = image_gradients(target)
        dy_pred, dx_pred = image_gradients(pred)
        weights_x = ops.cast(ops.exp(ops.mean(ops.abs(dx_true))), "float32")
        weights_y = ops.cast(ops.exp(ops.mean(ops.abs(dy_true))), "float32")

        # Depth smoothness
        smoothness_x = dx_pred * weights_x
        smoothness_y = dy_pred * weights_y

        depth_smoothness_loss = ops.mean(abs(smoothness_x)) + ops.mean(
            abs(smoothness_y)
        )

        # Structural similarity (SSIM) index
        ssim_loss = ops.mean(
            1
            - tf.image.ssim(
                target, pred, max_val=WIDTH, filter_size=7, k1=0.01**2, k2=0.03**2
            )
        )
        # Point-wise depth
        l1_loss = ops.mean(ops.abs(target - pred))

        loss = (
            (self.ssim_loss_weight * ssim_loss)
            + (self.l1_loss_weight * l1_loss)
            + (self.edge_loss_weight * depth_smoothness_loss)
        )

        return loss

    @property
    def metrics(self):
        return [self.loss_metric]

    def train_step(self, batch_data):
        input, target = batch_data
        with tf.GradientTape() as tape:
            pred = self(input, training=True)
            loss = self.calculate_loss(target, pred)

        gradients = tape.gradient(loss, self.trainable_variables)
        self.optimizer.apply_gradients(zip(gradients, self.trainable_variables))
        self.loss_metric.update_state(loss)
        return {
            "loss": self.loss_metric.result(),
        }

    def test_step(self, batch_data):
        input, target = batch_data

        pred = self(input, training=False)
        loss = self.calculate_loss(target, pred)

        self.loss_metric.update_state(loss)
        return {
            "loss": self.loss_metric.result(),
        }

    def call(self, x):
        c1, p1 = self.downscale_blocks[0](x)
        c2, p2 = self.downscale_blocks[1](p1)
        c3, p3 = self.downscale_blocks[2](p2)
        c4, p4 = self.downscale_blocks[3](p3)

        bn = self.bottle_neck_block(p4)

        u1 = self.upscale_blocks[0](bn, c4)
        u2 = self.upscale_blocks[1](u1, c3)
        u3 = self.upscale_blocks[2](u2, c2)
        u4 = self.upscale_blocks[3](u3, c1)

        return self.conv_layer(u4)

模型训练

optimizer = keras.optimizers.SGD(
    learning_rate=LR,
    nesterov=False,
)
model = DepthEstimationModel()
# Compile the model
model.compile(optimizer)

train_loader = DataGenerator(
    data=df[:260].reset_index(drop="true"), batch_size=BATCH_SIZE, dim=(HEIGHT, WIDTH)
)
validation_loader = DataGenerator(
    data=df[260:].reset_index(drop="true"), batch_size=BATCH_SIZE, dim=(HEIGHT, WIDTH)
)
model.fit(
    train_loader,
    epochs=EPOCHS,
    validation_data=validation_loader,
)

Epoch 1/30
 9/9 ━━━━━━━━━━━━━━━━━━━━ 64s 5s/step - loss: 0.7656 - val_loss: 0.7738
Epoch 10/30
 9/9 ━━━━━━━━━━━━━━━━━━━━ 7s 602ms/step - loss: 0.7005 - val_loss: 0.6696
Epoch 20/30
 9/9 ━━━━━━━━━━━━━━━━━━━━ 7s 632ms/step - loss: 0.5827 - val_loss: 0.5821
Epoch 30/30
 9/9 ━━━━━━━━━━━━━━━━━━━━ 7s 593ms/step - loss: 0.6218 - val_loss: 0.5132

<keras.src.callbacks.history.History at 0x7f5a2886d210>

可视化模型输出

我们在验证集上可视化模型输出。第一张图像是 RGB 图像，第二张图像是真实深度图图像，第三张是预测深度图图像。

test_loader = next(
    iter(
        DataGenerator(
            data=df[265:].reset_index(drop="true"), batch_size=6, dim=(HEIGHT, WIDTH)
        )
    )
)
visualize_depth_map(test_loader, test=True, model=model)

test_loader = next(
    iter(
        DataGenerator(
            data=df[300:].reset_index(drop="true"), batch_size=6, dim=(HEIGHT, WIDTH)
        )
    )
)
visualize_depth_map(test_loader, test=True, model=model)
